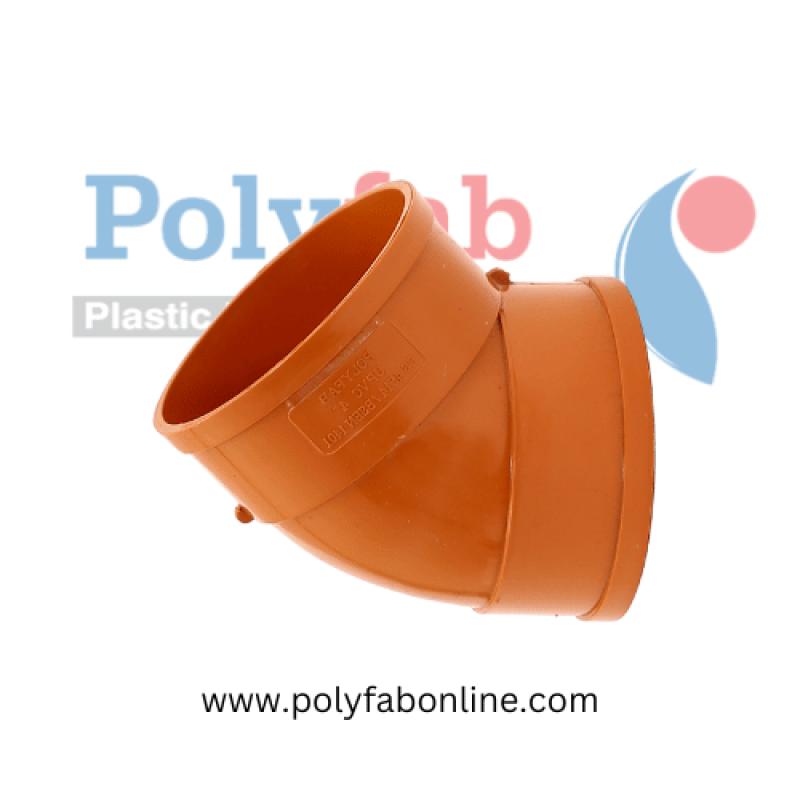

Elbow 45° S/W
- Category:Underground Drainage Fittings - Solvent Weld Type

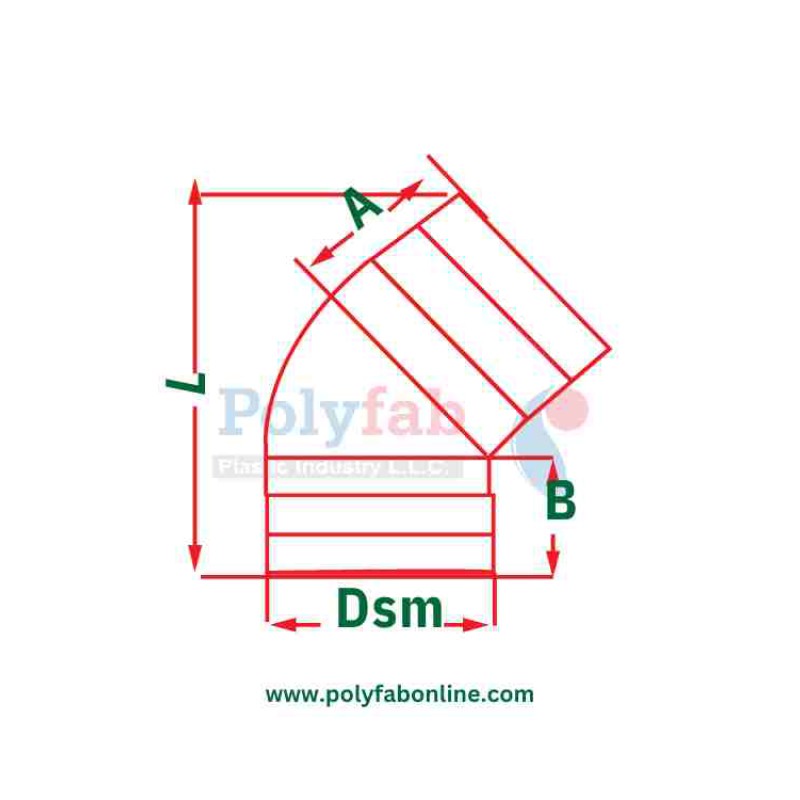

| Diameter (Dn) | Dsm | A | L |
| 82mm(3") | 82.55 | 60 | 130 |
| 110mm(4") | 110.7 | 80 | 170 |
| 160mm(6") | 160.9 | 92 | 210 |
| 200mm(8") | 201.1 | 105 | 250 |
| 250mm(10") | 251.1 | 130 | 290 |
| 315mm(12") | 316.3 | 160 | 320 |
| Diameter (Dn) | Dsm | A | L |
| 82mm(3") | 82.55 | 60 | 130 |
| 110mm(4") | 110.7 | 80 | 170 |
| 160mm(6") | 160.9 | 92 | 210 |
| 200mm(8") | 201.1 | 105 | 250 |
| 250mm(10") | 251.1 | 130 | 290 |
| 315mm(12") | 316.3 | 160 | 320 |
