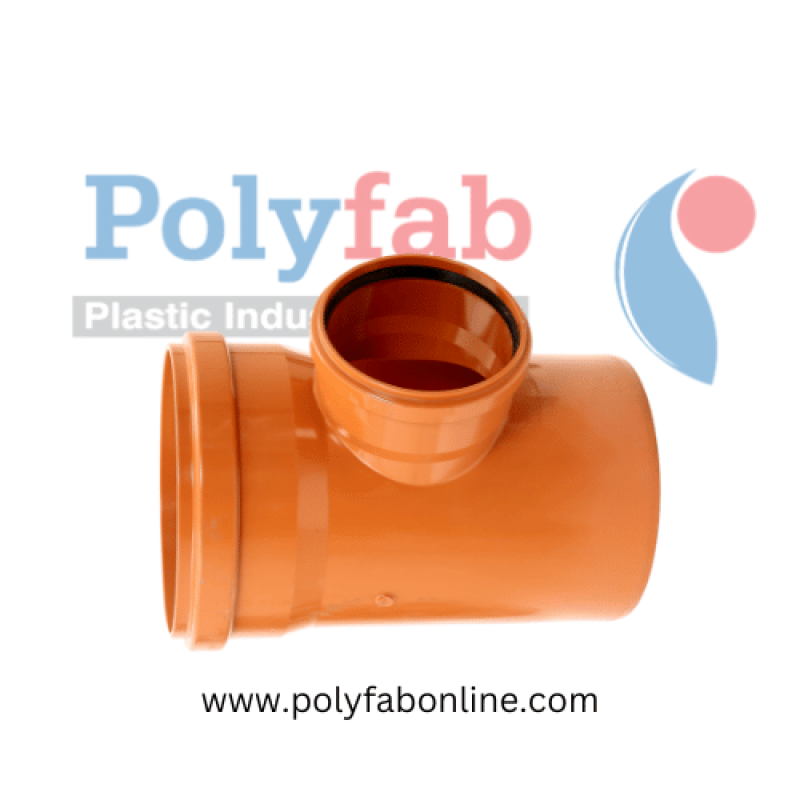

Reducing Tee R/R
- Category:Underground Drainage Fittings - Push Fit Type

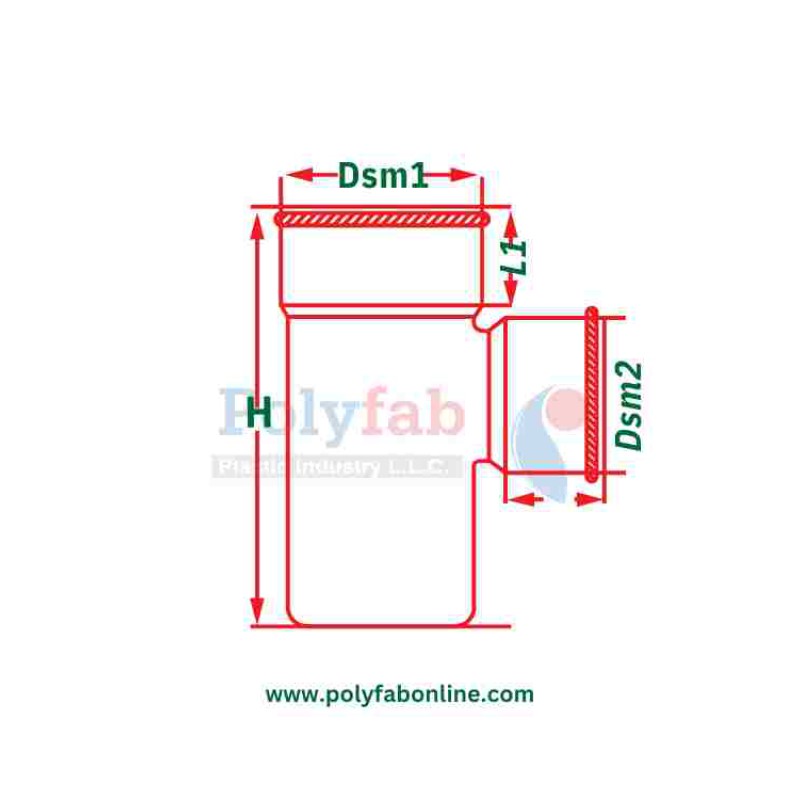

| Diameter (Dn) |
Dsm |
Dsm2 |
H(Max) |
L |
L2 |
| 110mm(4") x 82mm(3") |
110.7 |
82.55 |
242 |
60 |
52 |
| 160mm(6") x 110mm(4") |
160.9 |
110.7 |
324 |
70 |
60 |
| 200mm(8") x 110mm(4") |
201.1 |
110.7 |
397 |
80 |
60 |
| 200mm(8") x 160mm(6") |
201.1 |
160.9 |
397 |
80 |
70 |
| 250mm(10") x 160mm(6") |
251.1 |
190.9 |
470 |
90 |
70 |
| 250mm(10") x 200mm(8") |
251.1 |
201.1 |
470 |
90 |
80 |
| 315mm(12") x 160mm(6") |
316.3 |
160.9 |
530 |
110 |
70 |
| 315mm(12") x160mm(6") |
316.3 |
201.1 |
530 |
110 |
80 |
| 315mm(12") x 250mm(10") |
316.3 |
251.1 |
530 |
100 |
90 |
![]()
×
